Transition metals
"The transition elements are those elements having a
partially filled d or f subshell in any common oxidation state."
The term
"transition elements" most commonly refers to the d-block transition
elements. The 2B elements zinc, cadmium and mercury do not strictly meet the
defining properties, but are usually included with the transition elements
because of their similar properties. The f-block transition elements are
sometimes known as "inner transition elements". The first row of them
is called the lanthanides or rare earths. The second row consists of the
actinides. All of the actinides are radioactive and those above Z=92 are
manmade in nuclear reactors or accelerators.
The general properties
of the transition elements are
- They are usually high melting point
metals.
- They have several oxidation states.
- They usually form colored
compounds.
- They are often paramagnetic.
The transition elements
include the important metals iron, copper and silver.
Iron and titanium are the most abundant transition elements. Many catalysts for
industrial reactions involve transition elements

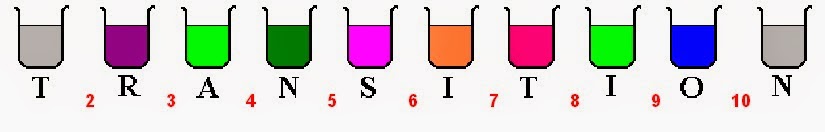

2 to 9 are typical transition metal ion/compound coloured solutions
There are four transition
series:
=>The first transition series:
Scandium (Sc) through Copper (Cu):
=>The second transition series:
Yttrium (Y) through Silver (Ag):
=>The third transition series:
Lanthanum (La) to Hafnium (Hf) through Gold (Au))
=>The forth transition
series which is incomplete: Actinium (Ac) to element 104 through element 109:
6d
subshell is filling, If elements 110 and 111 are found then this will
complete this series.
Electronic Configuration of first transition series:
Group (column) number
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
atomic numberelement symbol
|
21Sc
|
22 Ti
|
23 V
|
24Cr
|
25Mn
|
26Fe
|
27Co
|
28Ni
|
29Cu
|
30Zn
|
electron configuration
|
3d14s2
|
3d24s2
|
3d34s2
|
3d54s1
|
3d54s2
|
3d64s2
|
3d74s2
|
3d84s2
|
3d104s1
|
3d104s2
|
The valence configuration for first series transition metals (Groups 3 - 12) is usually 3dn 4s2.
Exceptions: The electron configurations for chromium (3d5 4s1) and copper (3d10 4s1) are exceptions.
This is because the 3d and 4s orbitals are very close in energy, and the energy of the 3d orbital drops going across the row.
For both chromium and copper the configuration which has more electrons in in the 3d subshell is of lower energy.
This is because the 3d and 4s orbitals are very close in energy, and the energy of the 3d orbital drops going across the row.
For both chromium and copper the configuration which has more electrons in in the 3d subshell is of lower energy.
At chromium the difference in 3d and 4s orbital energies is of the order of the pairing energy (remember electron pairing requires energy).
The 3d5 4s1 configuration is of lower energy because this configuration has the maximum number of unpaired electrons for a d-subshell.
At copper (near the end of the transition series) the 3d orbital energy has dropped so that 3d orbitals are actually lower in energy than 4s orbitals
This means the 3d10 4s1 configuration is of lower energy because it has more in 3d orbitals.
The 3d5 4s1 configuration is of lower energy because this configuration has the maximum number of unpaired electrons for a d-subshell.
At copper (near the end of the transition series) the 3d orbital energy has dropped so that 3d orbitals are actually lower in energy than 4s orbitals
This means the 3d10 4s1 configuration is of lower energy because it has more in 3d orbitals.
For the transition metal atoms, the total number of valence electrons equals the number of the column (group) in the periodic table (counting from the left).
For transition metal ions having charge ≥ +2, the number of d electrons equals the total number of valence electrons minus the charge on the ion.
This is because
Orbitals in the 3d and 4s subshells are of similar energy.
In transition metal atoms the 4s subshell is of lower energy than the 3d subshell.
In transition metal ions of charge ≥ +2, 3d is of lower energy than 4s.
In transition metal ions of charge ≥ +2, all valence electrons in the d-subshell.
Therefore
Ni (Group 10) has 10 valence electrons and Ni2+ is d8
Fe (Group 8) has 8 valence electrons and Fe3+ is d5
Ti (Group 4) has 4 valence electrons and Ti3+ is d1
In transition metal atoms the 4s subshell is of lower energy than the 3d subshell.
In transition metal ions of charge ≥ +2, 3d is of lower energy than 4s.
In transition metal ions of charge ≥ +2, all valence electrons in the d-subshell.
Therefore
Ni (Group 10) has 10 valence electrons and Ni2+ is d8
Fe (Group 8) has 8 valence electrons and Fe3+ is d5
Ti (Group 4) has 4 valence electrons and Ti3+ is d1
*d
and f – blocks elements show exceptional properties.
*d – block; the
covalent radii of the elements decrease from left to half midway (to Cr) and
the radii of the elements, from Cr to Cu are very close to one another until
near the end where the size increase slightly, across a period; (Why?) because on passing
from left to right, extra protons are placed in the nucleus and extra orbital
electrons are added. The orbital electrons shield the nuclear charge incompletely
(because shielding effect order s > p > d > f). Because of this poor
shielding effect by d - electrons, the nuclear charge attracts all of the
electrons more strongly: hence a contraction in size occurs.1
The radii of the elements, from Cr to Cu are very close
to one another; this is due to the fact that the successive addition of d –
electrons screens the outer electron (4s) from the inward pull of the nucleus.
As a result of this, the size of the atom does not alter much in moving from Cr
to Cu.2
Near the end of the period, there is a slight increase in
the atomic radii; this is due to the fact that near the end of the series, the
electron - electron repulsions between added electrons in the same orbitals are
greater than the attractive forces due to the increased nuclear charge. This
result in the expansion of the electron cloud and thus the atomic radius
increases.
Sc
1.44
|
Ti
1.32
|
V
1.22
|
Cr
1.17
|
Mn
1.17
|
Fe
1.17
|
Co
1.16
|
Ni
1.15
|
Cu
1.16
|
Zn
1.25
|
*The
elements in the 3rd group of the d-block show the expected increase
in size Sc ----Y-----La.
*The
elements in the 4th to 12th group of d – block the atomic
radii of the first and second transition elements show expected increases
but radii of the second and third transition series are almost same; (why?) this
is due to the fact in the atoms of the second transition series, the number of
shells increases, their atomic radii are larger than those of the elements of
the first transition series but in second and third transition metals between lanthanum and hafnium there are 14 lanthanide elements are present, in which
the antepenultimate 4f shell of electrons is filled. There is a gradual
decrease in size of the 14- lanthanide elements from Ce to Lu. This is called
lanthanide contraction. Thus the lanthanide contraction cancels almost exactly
the normal size increases on descending a group of transition elements.
Ionic Radii:-
“The effective
distance from the center of the nucleus of the ion upto which it exerts its
influence on its electronic cloud is called ionic radii.” Cation always has smaller radius and an anion
is always larger than it parent atom.
*In case of
isoelectronic ions, i.e., ions having same number of electrons but different
nuclear charge, ionic radius decreases with increase in nuclear charge.
*Ionic radii follow the same trend as the atomic radii.
Oxidation
states
The
transition elements exhibit a large number of oxidation states. With the
exception of few elements, most of these show variable oxidation states. These
different oxidation states are related to the electronic configuration of their
atoms. For example, the oxidation states exhibited by the transition elements
of the first series are listed in TABLE.
Different oxidation states of
First transition series
Element
|
Outer
electronic configuration
|
Oxidation
states
|
|
Sc
|
3d14s2
|
+2,+3
|
|
Ti
|
3d24s2
|
+2,+3,+4
|
|
V
|
3d34s2
|
+2,+3,+4,+5
|
|
Cr
|
3d54s1
|
(+1),+2,+3,(+4),(+5),+6
|
|
Mn
|
3d54s2
|
+2,+3,+4,(+5),+6,+7
|
|
Fe
|
3d64s2
|
+2,+3,(+4),(+5),(+6)
|
|
Co
|
3d74s2
|
+2,+3,(+4)
|
|
Ni
|
3d84s2
|
+2,+3,+4
|
|
Cu
|
3d104s1
|
+1,+2
|
|
Zn
|
3d104s2
|
+2
|
|
*Oxidation
states with in the brackets are unstable.
Explanation
The
existence of the transition elements in different oxidation states means that
their atoms can lose different number of electrons. This is due to the
participation of
inner (n-1) d-electrons in addition to outer ns-electron because, the energies of the
ns and (n-1) d-subshells are almost equal. For example, scandium has the
electronic configuration of 3d14s2. It exhibits an
oxidation state of +2 when it uses both of its
two 4s-electrons for bonding. It can also
show oxidation state of +3 when it uses its two s-electrons and one d-electron.
Important conclusion regarding oxidation states of
transition elements
The examination of common oxidation states shown by
different transition metals reveals the following facts :
(i) The variable oxidation states of
transition metals are due to participation of inner (n -1) d and
outer n s-electrons. The lowest oxidation state corresponds
to the number of ns-electrons. For example, in the first transition series , the lowest
oxidation states of Cr (3d54s1) and Cu(3d104s1)
are +1 while for others , it is +2 (3d104s2)
(ii) Except scandium, the most common oxidation
state of the first row transition elements is +2 which arises due to loss
of two 4s-electrons. This means that after scandium 3d-orbitals become more
stable and therefore , are lower in energy than the 4s-orbitals. As a result,
electrons first removed from 4s-orbitals.
(iii) For the first five elements, the minimum
oxidation state is equal to the number of electrons in the s-orbitals and the
other oxidation states are given by the sum of outer s - and some or all
d-electrons. The highest oxidation state is equal to the sum of the outer s (ns
) and (n -1) d-electrons. For the remaining five elements , the minimum
oxidation state is given by the electrons in s-orbital while the maximum
oxidation state is not related to their electronic configurations. The highest
oxidation state shown by any transition metal is +8.
(iv) In the +2 and +3 oxidation states, the
bonds formed are mostly ionic. In the compounds of higher oxidation states
(generally formed wth oxygen and fluorine), the bonds are essentially covalent.
Thus the bonds in +2 and +3 oxidation states are generally formed by the loss
of two or three electrons respectively, while the bonds in higher oxidation
states are formed by sharing of d-electrons. For example MnO4- (Mn
in +7 ) state all the bonds are covalent.
(v) Within a group, the maximum oxidation
state increases with atomic number. For example, iron (Group 8) shows common
oxidation states of +2 and +3 but ruthenium and osmium in the same group form
compounds in the +4 , +6 and +8 oxidation states.
(vi) Transition metals also form compounds in
low oxidation states such as +1 and 0 or negative. The common examples are
[Ni(CO)4], [Fe(CO)5] in which nickel and iron are in zero
oxidation state.
Complex formation tendency of transition metals:
Transition
metal ions have very large vacant d- orbitals in their valence shells. As
a result of this, lone pairs of electrons from ligands easily fill up the
valence shells. When this happens, coordination compounds are
formed. Note that this also takes place because d-orbitals have definite
shapes and size as opposed to f-orbitals. That's why transition metals form
coordinationcompounds while inner transition elements don't.
Magnetic properties of transition metals:
The magnetic properties of a compound is a
measure of the number of unpaired electrons in it. There are two main types of
substances :
i) Paramagnetic substances : The substances
which are attracted by magnetic field are called paramagnetic substances and
this character arises due to the presence of unpaired electrons in the atomic
orbitals.
ii) Diamagnetic substances :
The substances which are repelled by magnetic field are called diamagnetic
substances and this character arises due to the presence of paired electrons in
the atomic orbitals.
Most of the compounds of transition elements are paramagnetic in nature and are
attracted by the magnetic field.
The transition elements involve the partial filling
of d-subshells. Most of the
transition metal ions or their compounds have unpaired electrons in d-subshell
(configuration from d1 to d9) and therefore, they
give rise to paramagnetic character. The magnetic character is expressed in Bohr
magnetonsabbreviated as B.M. The magnetic moments of some ions of the first
transition series are given in the following TABLE.
Magnetic moments of ions
of first transition series.
Ion
|
Outer configuration
|
Number of unpaired electrons
|
Magnetic moment(mB)
|
Sc3+
|
3d0
|
0
|
0
|
Ti 3+
|
3d1
|
1
|
1.75
|
V3+
|
3d2
|
2
|
2.76
|
Cr3+
|
3d3
|
3
|
3.86
|
Cr2+
|
3d4
|
4
|
4.8
|
Mn2+
|
3d5
|
5
|
5.96
|
Fe2+
|
3d6
|
4
|
5.10
|
Co2+
|
3d7
|
3
|
4.4-5.2
|
Ni2+
|
3d8
|
2
|
2.9 - 3.4
|
Cu2+
|
3d9
|
1
|
1.8 - 2.2
|
Zn2+
|
3d10
|
0
|
0
|
The magnetic moments arise only from the
spin of electrons. This can be calculated from the relation :
μ
= √n(n+2 B.M
Where n is the number
of unpaired electrons and B.M represents Bohr magneton. It is clear
from the Table that as the number of unpaired electron increases from 1 to 5,
the magnetic moment and hence the paramagnetic character also increases. After
d5 configuration, there is decrease in magnetic moment due to
decrease in number of unpaired electrons. For example, d6 configuration
has 4 unpaired electrons, d7 configuration has 3 unpaired
electrons and so on.
In addition to
paramagnetic and diamagnetic substances, there are a few substances such as
iron metal, iron oxide which are highly magnetic (about 1000 times more than
ordinary metals). These are called Ferromagnetic substances.
Electronic Configuration of second transition series:
Second (4d) Transition Series (Y-Cd)
At. No.
|
39
|
40
|
41
|
42
|
43
|
44
|
45
|
46
|
47
|
48
|
Element
|
Y
|
Zr
|
Nb
|
Mo
|
Tc
|
Ru
|
Rh
|
Pd
|
Ag
|
Cd
|
Config.
|
4d15s2
|
4d25s2
|
4d45s1
|
4d55s1
|
4d55s2
|
4d75s1
|
4d85s1
|
4d105s0
|
4d105s1
|
4d105s2
|
References:
1-http://hsc.csu.edu.au/chemistry/options/art/2769/ch984.htm#b1
2-http://www.ucc.ie/academic/chem/dolchem/html/comp/transmet.html
3-http://www.docbrown.info/page07/transition1.htm
4-http://www.newagepublishers.com/samplechapter/001210.pdf
5-http://www.bestchoice.net.nz/html/sa1/main/s148/p3960.htm
No comments:
Post a Comment
